Water Meter
Cold Water or Hot water
|
Water Meter FLOWINDO Body Material : Plastic (ABS) |
 |
Water Meter Amico Body Material : Plastic (ABS) |
 |
Water Meter Amico Type LXSG 15-40E Body Material : Cast Iron / Brass |
 |
Water Meter Amico Type LXSG 50E Body Material : Cast Iron |
|
|
Water Meter Amico Induk
Type LXLG
Body Material : Cast Iron / Brass
Size : 80 – 400 mm Max. Flow Rate : 80 – 2.000 m3/h Weight : 20 – 207 kg Nominal Flow Rite : 40 – 1.000 m3/h |
|
|

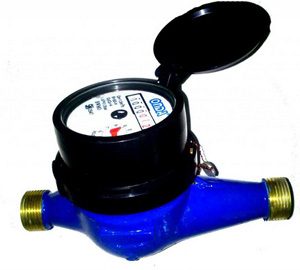

Water Meter ONDA Type BWMO Body Material : Brass Size : 15 mm Max. Flow Rate : 3 m3/h Weight : 1 kg Nominal Flow Rite : 1.5 m3/h |
 |
Water Meter SENSUS for cold water Type WP-Dynamic Body Material : Cast Iron |
 |
Water Meter SENSUS for Hot water Type WP-Dynamic Body Material : Cast Iron Size : 40 – 400 mm Max. Flow Rate : 30 – 1.200 m3/h Weight : 7,4 – 187 kg Nominal Flow Rite : 15 – 600 m3/h Temp. : up to 130 deg |
|
|

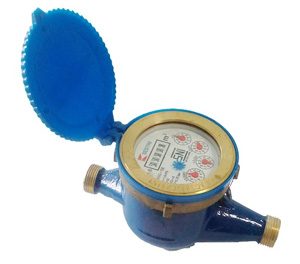

Water Meter Bestini Type LXSG 15E Body Material : Brass |
|
|
Water Meter INCO METER Type IMB 15 Body Material : Brass |
Electro Magnetic Flow Meter & Ultrasonic Flow Meter
 |
Magnetic Flowmeter Compact |
 |
Magnetic Flowmeter Remote |
 |
Magnetic Flowmeter Display Remote |
 |
Ultrasonic Flowmeter Wall Mount |
 |
Ultrasonic Flowmeter Portable |
 |
Variable Area Flowmeter / Rotameter |
Flow Meter Limbah Cold Water or Hot Water
Waste/Sewage Flowmeter
Analog (Mechanical) Coldwater or Hotwater Waste/Sewage Flowmeter
Size : 2″- 12″ (DN50-DN300)
|
Cold and Hot water |
Stainless Steel |
Data Logger
Bisa simpan data sampai 6 bulan
Flowmeter air kotor,
analog/mekanikal. Digunakan untuk limbah pabrik, flowmeter limbah STP,
flowmeter IPal, flowmeter limbah rumah sakit, hotel, irigasi, limbah
sawit, flowmeter air tanah, air sumur, flowmeter air sungai dll.
Tersedia dari ukuran 2″ (50mm) sampai 12″ (300mm), dengan body material
Cast Iron, Stainless Steel (untuk type 304 dan 316), anti macet, handal,
murah dan bergaransi sampai 2 tahun.
banyak digunakan pada industri limbah kelapa sawit, boiler, sistem ipal
dengan cairan panas berlumpur, lumpur panas dll. Dengan sistem
penunjukan analog dan tersedia juga unit yang mengeluarkan signal pulse.
Flowmeter ini harganya sangat terjangkau dan kuat, dapat digunakan
hingga waktu yang sangat panjang dan tidak menggunakan power source,
serta bisa digunakan untuk air panas bersih.
Specifications
| size | max flow (Qmax) |
continues flow (Qn) |
Transitional flow (Qt) |
min flow (Qmin) |
||
| DN | inch | mm | m3/Hour | |||
| DN 50 | 2 | 50 | 30 | 15 | 3 | 0.45 |
| DN 65 | 2.5 | 65 | 50 | 25 | 5 | 0.75 |
| DN 80 | 3 | 80 | 80 | 40 | 8 | 1.2 |
| DN 100 | 4 | 100 | 120 | 60 | 12 | 1.8 |
| DN 125 | 5 | 125 | 200 | 100 | 20 | 3 |
| DN 150 | 6 | 150 | 300 | 150 | 30 | 4.5 |
| DN 200 | 8 | 200 | 500 | 250 | 50 | 7.5 |
| DN 250 | 10 | 250 | 800 | 400 | 80 | 12 |
| DN 300 | 12 | 300 | 1200 | 600 | 120 | 18 |
| DN | SIZE (mm) | Connection Flange | Weight (Kgs) |
||
| Length | High | D1 Outside Diameter | D2 Bolt Inner Diameter | ||
| DN 50 | 200 | 272 | 165 | 125 | 10 |
| DN 65 | 200 | 274 | 185 | 145 | 11 |
| DN 80 | 225 | 281 | 200 | 160 | 16 |
| DN 100 | 250 | 291 | 220 | 180 | 17 |
| DN 125 | 250 | 312 | 250 | 210 | 21 |
| DN 150 | 300 | 341 | 285 | 240 | 30 |
| DN 200 | 350 | 384 | 340 | 295 | 41 |
| DN 250 | 450 | 435 | 405 | 350 | 66 |
| DN 300 | 500 | 486 | 445 | 400 | 100 |
